Reinstall of HBS 3 requires new connection to Backblaze be configured:
 April 14, 2022, C. Burke

How to create connection to Backblaze cloud backup service in HBS 3 app on NAS:

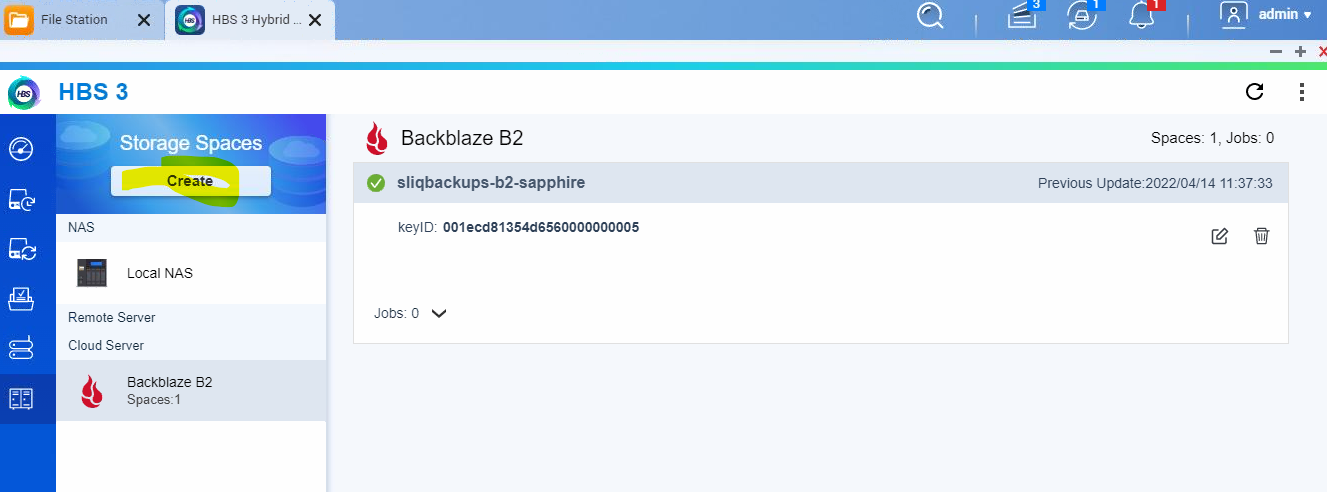

 1 -Open HBS 3 app on the NAS go to the “Storage Spaces” page and click on CREATE

Graphical user interface, text, application, email

Description automatically generated

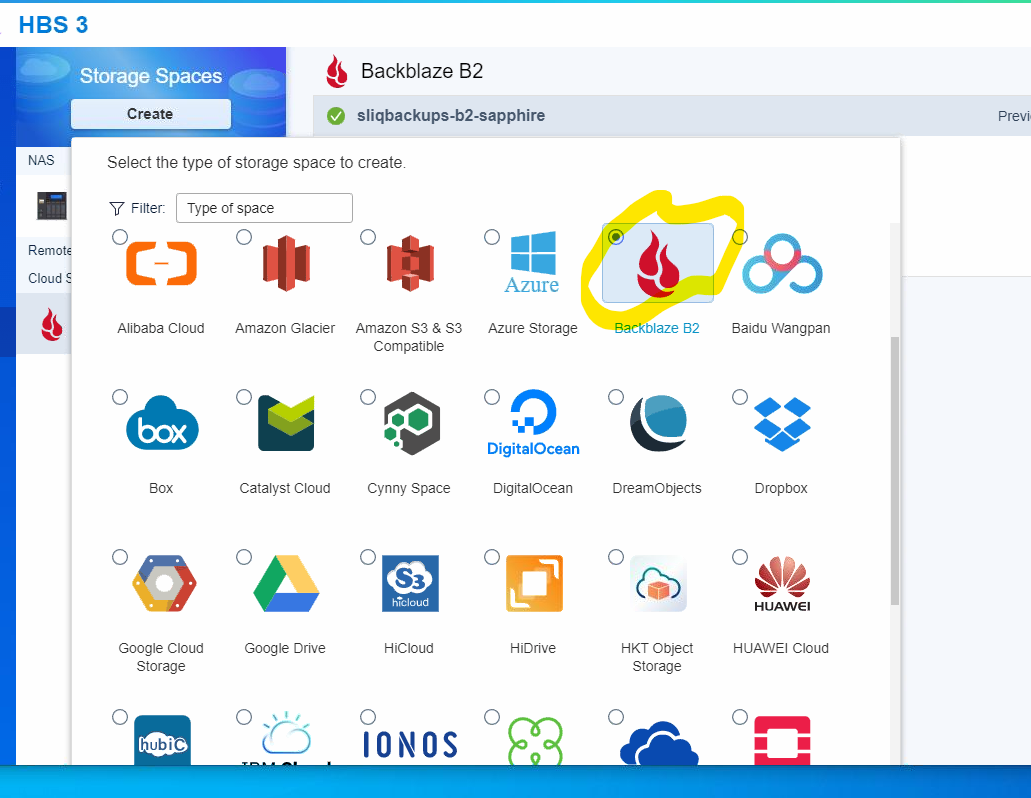

2 - Make sure Backbaze B2 is selected and click on Backblaze icon

Graphical user interface, application

Description automatically generated

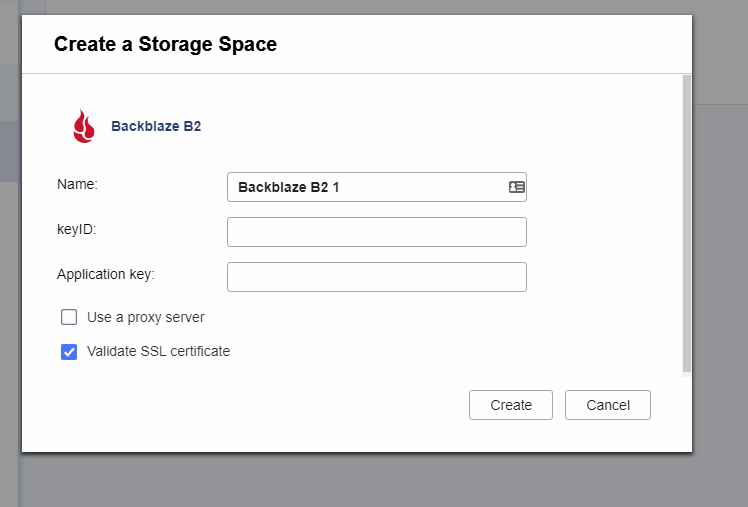

3 - This window opens where you must enter the info as shown.

Graphical user interface

Description automatically generated





To find the information to enter:

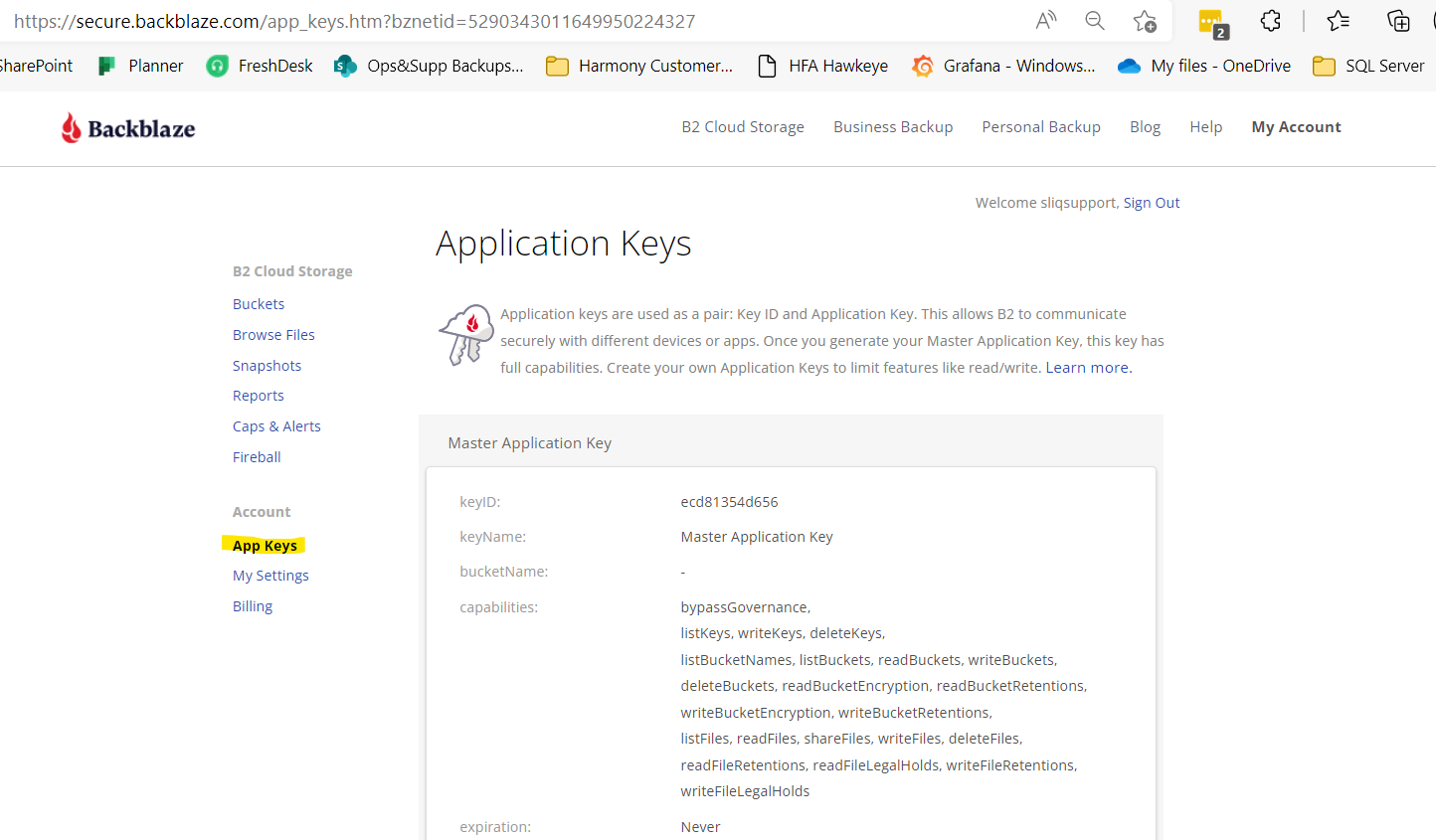

4- Login to the Backblaze web page with the B2 account. Select the “App Keys” page from the menu on the left.

Graphical user interface, text, application, email

Description automatically generated

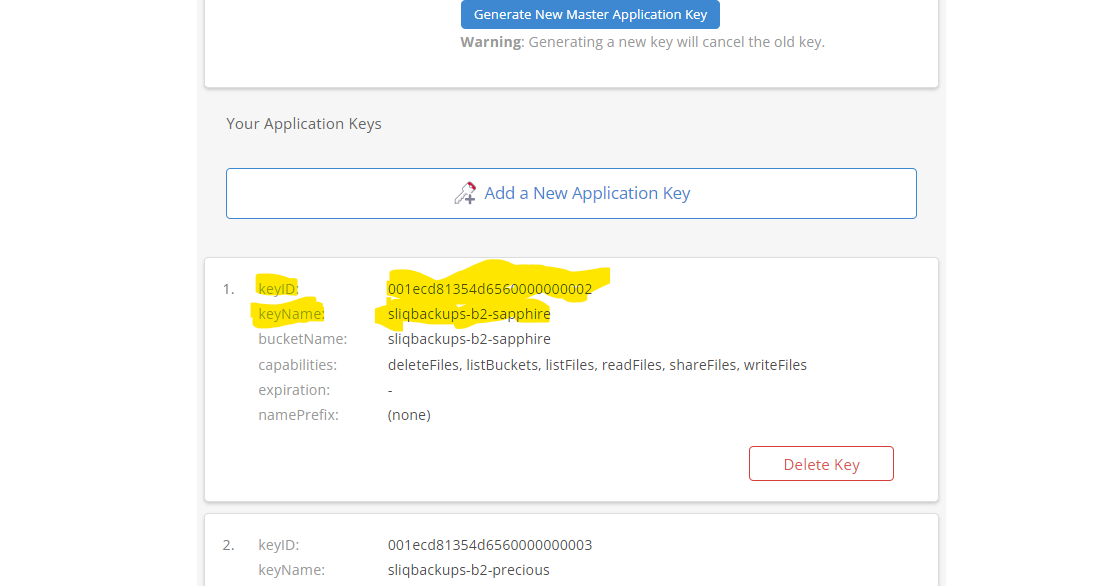

5- Scroll down and select one of the “keyID” windows for “sliqbackups-b2-sapphire”.

6- Copy and paste the keyNname and the keyID number that you see in that box to the HBS3 app box on the NAS.

Graphical user interface, text, application

Description automatically generated

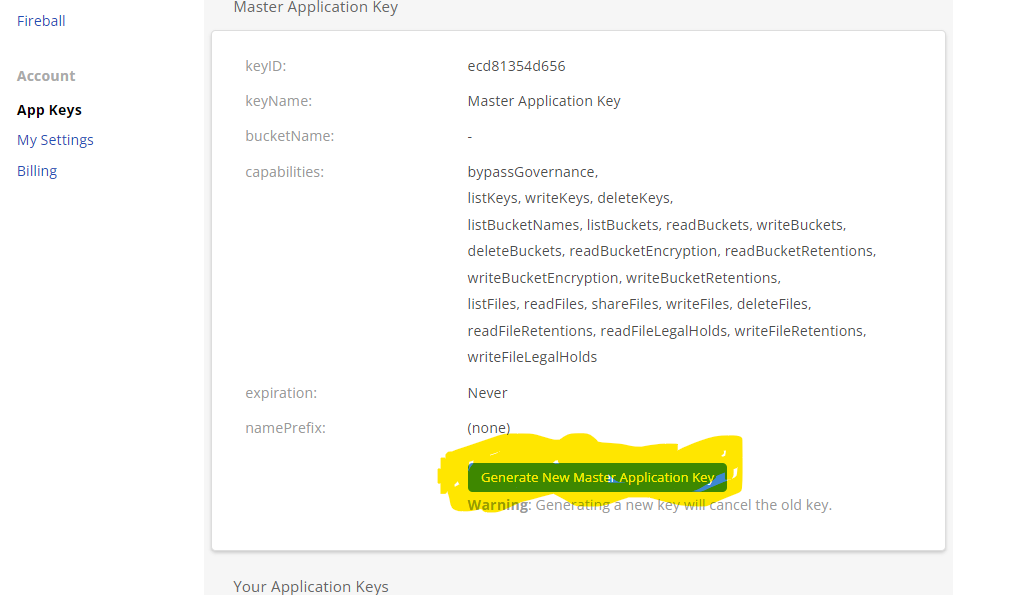

7- Next click on the “Generate New Master Application Key” blue button.

Graphical user interface, text, application, chat or text message

Description automatically generated

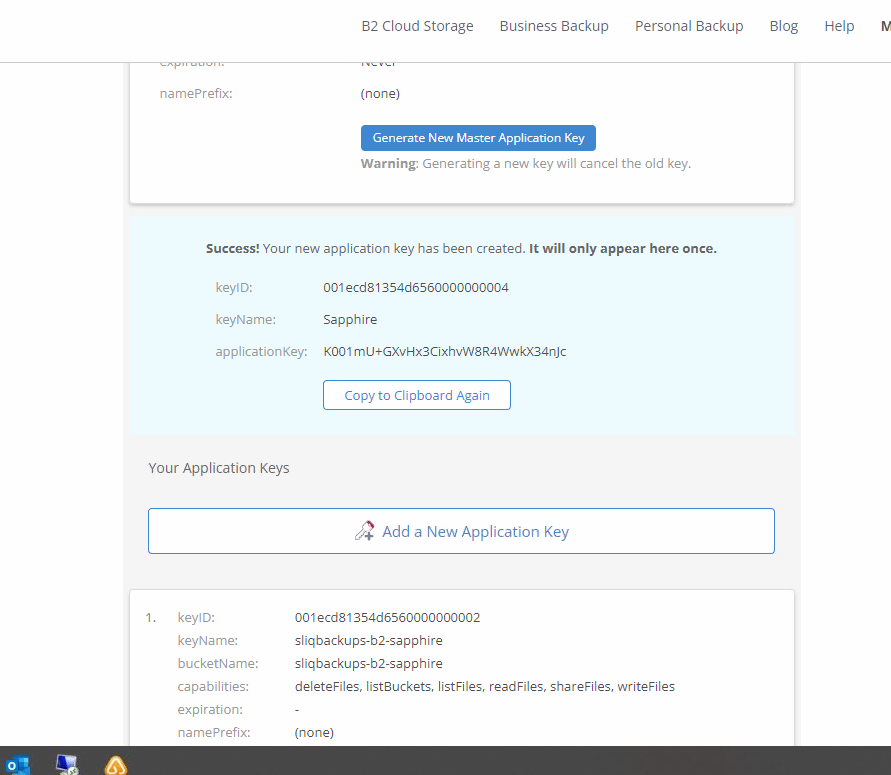

A section appears on the web page that has a button “Copy to Clipboard”.
8 - Click on “Copy to Clipboard”

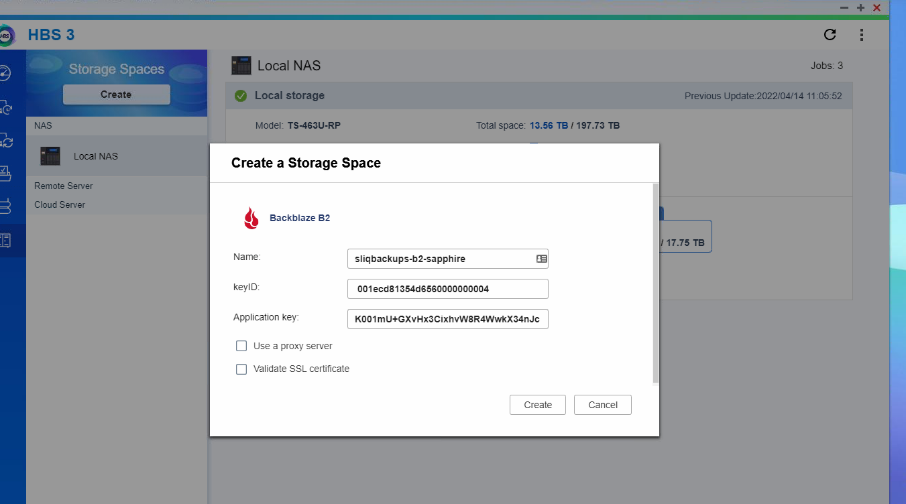

 9 – Go back on the NAS box HBS 3 app window   and paste the info into the “Application key” box.

Graphical user interface, application

Description automatically generated

10 - Click on CREATE.

Graphical user interface, application

Description automatically generated

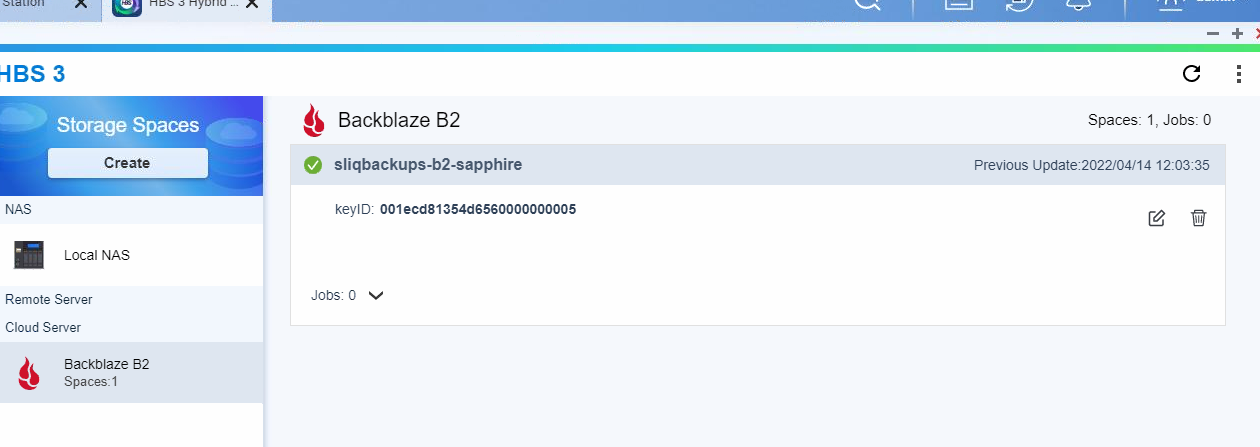

11 – It goes back to the main page and as below shows the connection is completed.

Graphical user interface, application

Description automatically generated
